EMI SHIELDING COMPONENTS
EMI Shielding Material Converting for OEM Components
Labelsun provides EMI shielding material converting for conductive foam, conductive fabric, fabric-over-foam structures, copper and aluminum foil, and adhesive-backed EMI materials. Each route is planned around drawing geometry, contact locations, die cutting, lamination, liner and presentation design, prototyping, dimensional verification, and production support.

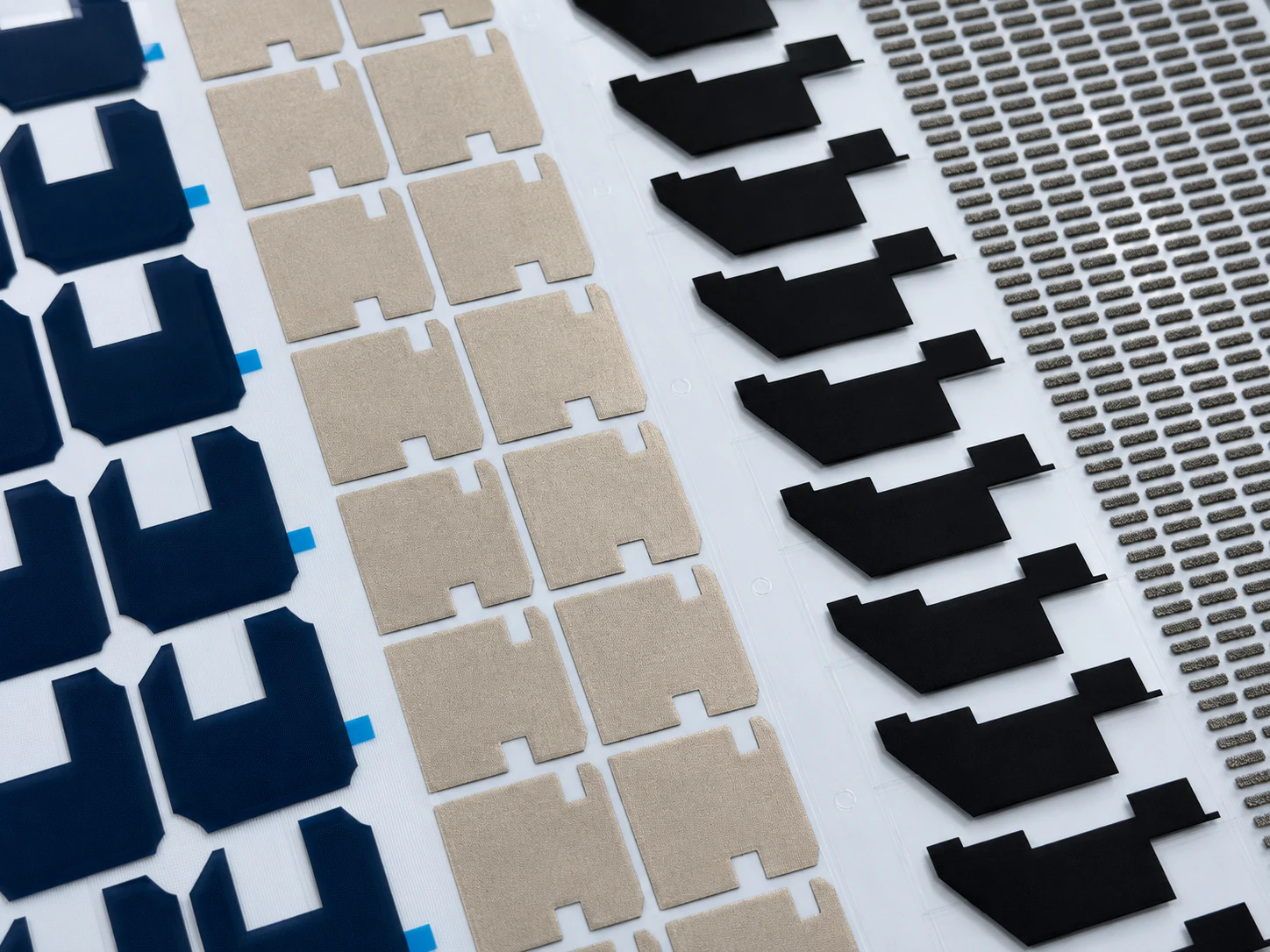

Conductive foam, fabric, laminated shielding layers, and die-cut EMI component formats prepared for OEM assemblies.
MATERIAL + CONVERT
Shielding Component Support
Conductive foam, shielding layers, grounding pads, and adhesive-backed EMI parts aligned with converting and OEM assembly handling requirements.
OEM SUPPORT
Prototype to Production
Material review, compression planning, liner design, and dimensional inspection support for repeat EMI component manufacturing.
Capability Overview
Why EMI Shielding Material Converting Matters
EMI materials are influenced by contact surface geometry, compression space, layer build-up, liner behavior, and handling route. Converting planning affects dimensional fit, assembly stability, and repeat production support.
Contact Surface Planning
Contact Surface Planning
Shielding performance depends on how converted parts meet enclosure edges, grounding points, and conductive contact surfaces across the assembly route.
Compression Space Review
Compression Space Review
Conductive foam, fabric-over-foam, and gasket materials must be reviewed for thickness, compression space, and recovery behavior before converting release.
Lamination & Adhesive Support
Lamination & Adhesive Support
Adhesive-backed EMI materials and laminated constructions need stable bonding, liner presentation, and handling control for repeatable OEM assembly.
Dimensional Fit
Dimensional Fit
Shielding strips, pads, and converted gasket parts still require clean edges, registration control, and dimensional inspection for production use.
SHIELDING STRUCTURE EVIDENCE
Conductive Fabric & Laminated Shielding
Converted conductive fabric, fabric-over-foam structures, and laminated shielding parts prepared for contact surfaces, enclosure fit, adhesive support, and grounding integration.
Solutions
EMI Shielding Solutions
Conductive Foam Conversion
Conductive foam parts converted for gasket, contact, and enclosure shielding positions requiring thickness control and stable compression behavior.
Conductive Fabric Components
Converted conductive fabric formats prepared for shielding layers, contact surfaces, and adhesive-backed component integration.
Fabric-Over-Foam Gaskets
Laminated fabric-over-foam constructions prepared for repeatable enclosure contact, handling, and shielding gasket assembly.
Conductive Foil Conversion
Copper and aluminum foil materials converted into shielding layers, contact pieces, strips, and adhesive-backed formats for OEM assembly.
Adhesive-Backed Shielding Parts
Shielding materials combined with adhesive support for cleaner positioning, liner release, and downstream assembly handling.
Multi-Layer EMI Constructions
Layered EMI parts combining shielding materials, liners, adhesives, and insulation into application-ready converted structures.
Materials We Convert
Materials We Convert
Material selection is reviewed according to contact surface, compression space, adhesive support, liner behavior, converting route, and assembly environment before production release.
MATERIAL APPLICATION NOTE
Shielding Gasket Material Formats
Conductive foam, laminated shielding layers, and adhesive-backed EMI materials are reviewed for compression behavior, liner presentation, contact fit, and converting stability before production release.
Typical Applications
Typical Applications
APP 01
Enclosure contact points
APP 02
PCB grounding areas
APP 03
Shielding gaskets
APP 04
Connector interfaces
APP 05
Grounding strips
APP 06
Display and control assemblies
APP 07
Electronics housing interfaces
APP 08
Custom die-cut EMI components
Process & Quality Control
Process & Quality Control
STEP 01
Drawing & Contact Review
Part geometry, contact surface locations, and grounding path requirements are reviewed before material and converting release.
STEP 02
Material / Compression Review
Conductive foam, fabric, laminated shielding structures, and adhesive-backed EMI materials are checked for thickness, compression space, and handling behavior.
STEP 03
Lamination & Converting Setup
Lamination route, liner presentation, and die-cutting setup are prepared according to part geometry, release behavior, and OEM assembly method.
STEP 04
First Article Check
Initial parts are reviewed for edge quality, layer registration, liner release, and dimensional fit before batch release.
STEP 05
Batch Production & Release
Production proceeds with inspection checkpoints, controlled records, and release review aligned with repeat OEM manufacturing support.

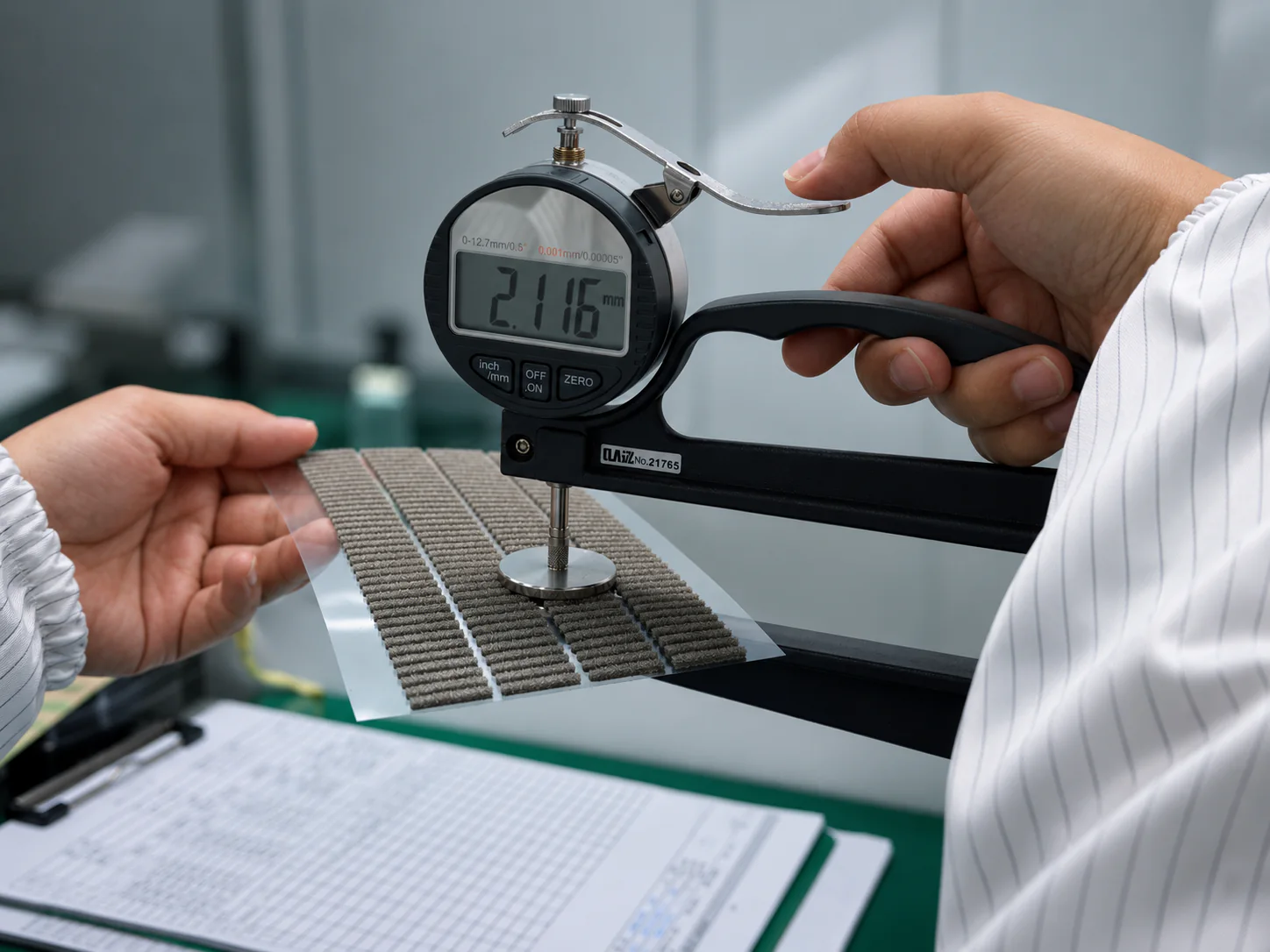

QUALITY CHECKPOINTS
Inspection Focus for EMI Components
EMI material converting is reviewed through thickness, dimensional fit, edge quality, liner behavior, and process handling checkpoints aligned with controlled OEM production release.
Request Support
Need EMI Shielding Converting Support?
Share drawings, contact surface requirements, compression space, and material preferences for engineering review.
